Description

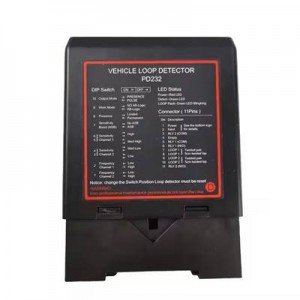

PD 132 Dual Channels Vehicle Loop Detector in UAEPD-232 Vehicle Loop Detector for Gate BarrierVehicle Loop Detector for gateModel No : PD-232PD-232 Inductive Vehicle Single Loop Detectorfor Automatic Gate opener barrier gate Traffic Inductive Vehicle accessThe detector must be installed in a convenient weatherproof location as close to the loop as possible.Installation location must choose to stay away from the heat source,it around other devices must maintain a distance of at least 10mm (mustn’t fix cling to the cabinet).A correct loop configuration and detector installationwill ensure a successful inductive loop detection system.Loop of several important parameters include: loop figure, size,and turns, install methods (details as Loop installation guide ).Specifications:Supply voltage : 230V ACLoop Quantity : 2Sensitivity : adjustable in 4 increments (high .medium high. medium, low)Operating temperature : -20°C ~ 70°CStorage temperature : -40°C ~ 85°CFrequency range : 20KHz ~ 170KHzReaction time : 100msLoop inductance : Ideal:80μH ~ 300μHLoop connection : <5m optimalLoop connection wiring : Maximum length 200 metersTwisted at least 20 times per meterDimensions : 78x40x108mmNet Weight : 350g
