Description

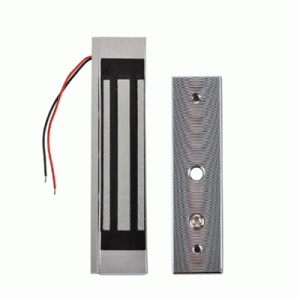

Electromagnetic Door Lock 180 Kg in UAEElectromagnetic Door Lock 180 Kg in Dubai UAEElectromagnetic Lock 180 Kg 350 LbsMagnetic Lock for Interior DoorsWithout Signal OutputVoltage: DC12V or DC24VHolding Force: 180KG(350Lbs)Lock Size: 170Lx41Wx21H(mm)Current Draw: 12V/300mA 24V/150mAElectromagnetic locks consist of an armature and a coil assembly,which become magnetized when an electric current passes through them.This magnetic field secures the doorand electronically controls when doors are locked and unlocked.Electromagnetic locks are fail-safe by design.Lock Size : 170Lx41.5Wx20.5H(mm)Armature plate : 130Lx33Wx9.3H(mm)Holding Force : 180KG (350Lbs)Voltage : DC12V or DC24V (24V need to customize)Current Draw : 12V/280mA  24V/150mASignal Output : Pls see EL-350TSSuitable for : Wooden door, Glassdoor, Metal door, Fireproof doorSurface Temp : ≤20°COperating Temp : -10℃ ~ 55℃ (14°F~131°F)Suitable Humidity : 0~90%(non-condensing)Finishes for Shell : Anodized aluminum surface texture processingFinishes for Magnetic : ZincFinishes for Armature : ZincWeight : 1.2kg
